Product Description
Solderweld SW-HVAK--Brazing Pack
The kit Includes:
2 Sticks of Sil Sol 56% Silver Flux Coated Brazing Rods.

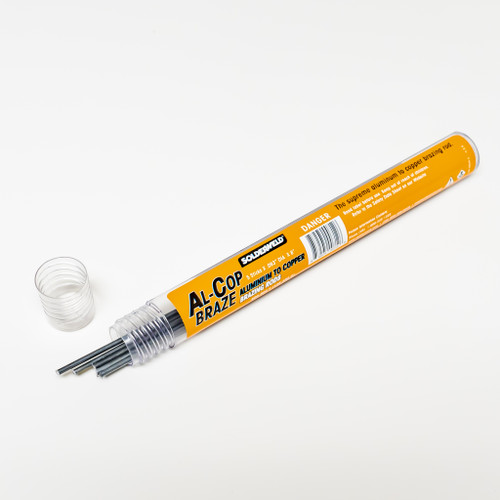

5 Sticks Al-Cop Brazing Rods
5 Sticks Alloy Sol Aluminum Repair Solder Rods
Alloy Sol Flux
Stainless Steel Wire Brush
Watertight Canister
Features/Benefits
- Al-Cop brazing rods provide a unique Aluminum to Copper brazing rod with a flux core that makes brazing Aluminum to Copper line sets quick and easy. Strong bonds that will endure the life of the fittings, a complete fix that will withstand the test of ti
- Alloy Sol aluminum repair and joining rods flow at half the melting temp of Aluminum and provides a repair at 30,000 PSI welding pressure. The Flux decontaminates the aluminum repair area so there is no need for pre-cleaning and it even works through pain
- Alloy Sol Flux is a powdered flux used for brazing aluminum and aluminum based alloys. The flux wets the joining surfaces thoroughly and prevents the entrapment of aluminum oxide inclusions in the joints. It can be used as supplied or mixed with water to
- Sil-Sol 56% silver solder flux is the best siver solder on the market. The Refrigeration Industry loves it for dissimilar metals, copper, brass, and stainless steel. The bonds are rated at 75,000 PSI and it flows so well that not much of the rod is needed
- Stainless Steel Wire Brush
- Watertight Canister
Specifications:
- Weight: 1.5 lbs.
- Packaging: 19 x 3.5" dia
- Sil Sol 56 - Recommended Brazing Temp.: Approx. 1200F (660C)
- Sil Sol 56 - Liquidus: 1200F (660C)
- Sil Sol 56 - Solidus: 500F (930C)
Alloy-Sol Flux:
- Appearance: White Powder Alloy
- Active Temperature Range: 650-1280F (345-690C)
Alloy-Sol Rod:
- Recommended Brazing Temp.: 600-700F (315-371C)
- Liquidus: 1080F (582C)
- Solidus: 580F (305C)
- Recommended Brazing Temp.: 950-1000F (510-537C)
- Liquidus: 905F (471C)
- Solidus: 826F (441C)
Al-Cop Rod
- Recommended Brazing Temp.: 950-1000F (510-537C)
- Liquidus: 905F (471C)
- Solidus: 826F (441C)
- Appearance: Silver-Colored with White Flux Channel
