Refrigerator Evaporator Fan Motor for Whirlpool 12002744 AP4009649 PS2004031

$14.71
SKU:
12002744
UPC:
840993013256
Condition:
New

Product Description

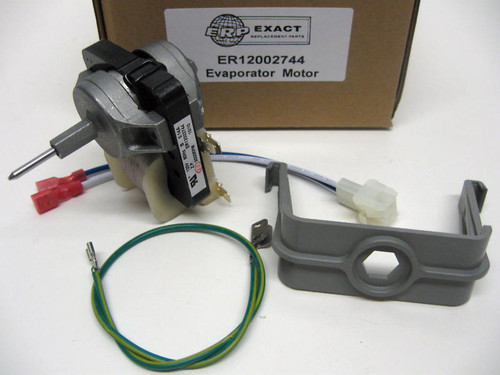

Refrigerator Evaporator Fan Motor part number ER-12002744.

Includes mounting bracket and 2 wires.

1/8" shaft, 3 terminal hook up ( 2 1/4" terminals, 1 3/16" terminal).

Hexagon shape on both ends, grommets not included.

Replaces numbers 1174059, 67003917, 67006515, AH2004031, AP4009649, EA2004031, PS2004031, and TJ12002744.

Designed to fit specific Whirlpool manufactured dishwasher models including Amana, Jenn Air, Kenmore, Magic Chef and Maytag.

Product Reviews

Write a Review
  • 5
    Evap motor 12002744

    Posted by Dominic on 29th Aug 2019

    Perfect fit, great price, timely delivery!

  • 5
    Works great, easy fix.

    Posted by Jonathan Case on 28th Jun 2018

    This fan is quite universal. I have a Kenmore Elite fridge and this fan fit in it with no issues and very quite operation.

  • 5
    It Works :-)

    Posted by Keith on 22nd Apr 2017

    It is different from the original evaporator fan motor but it works and it was easy to install.
    Our refrigerator: Model #59676509500 KENMORE Bottom-Mount Refrigerator

  • 5
    Working great so far

    Posted by Unknown on 20th Jun 2016

    Great price and worked as expected. It's only been a few days since install but it has my fridge working for now. Will update if I have a problem with durability. You won't get any instructions with it but there are some youtube videos showing the install. Blue and white wires go on the coil and the green ground wire goes on the frame. You should be able to find the ground bar that other green ground wires are clipped to. I wasn't sure of the polarity on the blue/white wires but checked that the fan was blowing air in the right direction before putting the panel back.
