Product Description

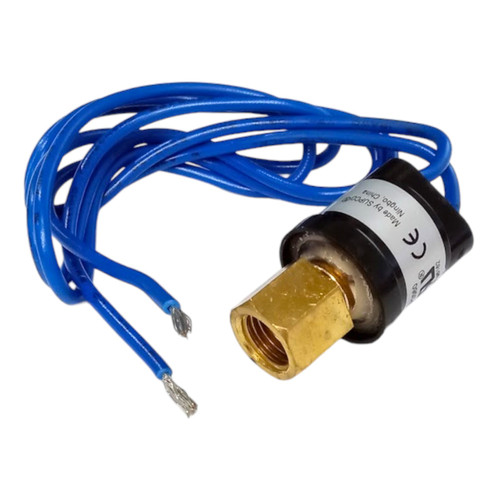

Supco Part number SLP90120
Open: 90 PSI Close: 120 PSI
Low pressure switch opens on pressure fall
High precision controls at economical prices. Encapsulated, non-adjustable, single pole - single throw, direct mount switches for use with HFC, HCFC, and CFC refrigerants
Features:
- ¼" SAE 45° female flare fitting with valve core depressor
- Low pressure switch opens on pressure fall
- Life at rated load: 100,000 cycles
- Automatic Reset
- Rated Voltage 24/120/240 VAC @ 50/60 Hz
- Snap acting stainless steel hermetically sealed sensor
- Wire is 18 AWG, 18" long
- Small size and light weight for direct mounting
- Excellent set point repeatability/stability
Specifications:
- -31°F to 149°F (-35°C to 65°C)
- UL® Recognized, CE®
- Max Pressure 700PSI
