Product Description

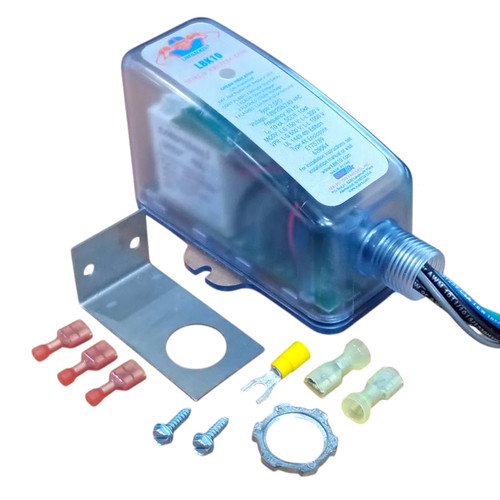

The LBK10 surge protector uses state-of-the-art TPMOV technology coupled with the ability to remove your equipment from damaging surges, the LBK10 provides the ultimate solution for you surge protection needs.
Features:
- TPMOV Technology
- NO/NC relay to disconnect equipment and/or activate indicator
- Easy installation at condensing unit
- Green LED indicates surge protection status
- 4X style Weatherproof housing
- 3 Year product warranty
- 3 Year Connected equipment guarantee
- UL Listed 1449, 4th edition
- See product sheet F582 in 'Downloads' section for more information
- Type 2 Surge Protection Device
Specifications:
- Voltage 120/208/240 VAC
- Frequency 60 Hz
- Nominal Discharge Current (In) 10 kA
- Short Circuit Current Rating (SCCR) 10 kA
- Max Continuous Operating Voltage (MCOV) L-N 150 V
- Voltage Protection Rating (VPR) L-N/G 600V; L-L 1000V
- Operating Temperature -40°F to 158°F (-40°C to 70°C)
- Type 4X Enclosure
- Relay Contact Rating 12A @ 250 VAC
