Product Description

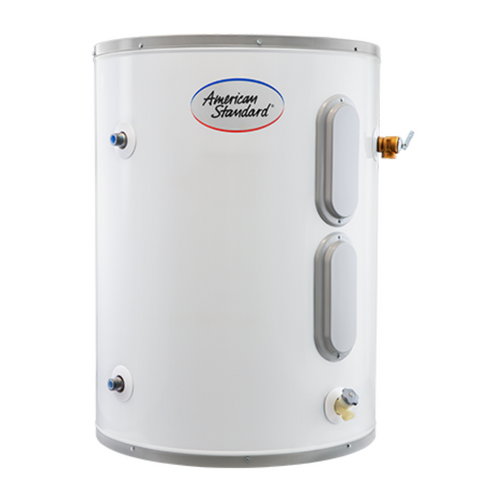

American Standard Short Low Boy, Side Connected Electric Water Heater, part number ENS50L6
Specifications:
- Standard of 4500 Watts, Maximum of 6000 Watts
- Uniform Energy Factor .92
- Jacket Diameter: 26 1/4"
- 46 Nominal Gallons
- First Hour Rating: 58
Dimensions in inches (measured floor to):
- Water Connections: 26"
- Top of Heater: 34 1/4"
- Side Temperature and Pressure Release Valve: 26 1/3"
- Water Connections Inlet: 7"
- Water Spread: 19"
Features:
- Fully Automatic Surface Mount Thermostats
- NON-CFC Foam Insulated - Saves energy and reduces fuel costs by maximizing heat retention
- Listed to UL 174
- Complies with NAECA, ANSI & Energy Efficiency Requirements & DOE Test Procedures
- Dual Screw-in Heating Elements Conserve Energy by Direct Heat Transfer
- Double Heating Elements - Dual screw-in heating elements transfer heat directly to water to conserve energy
- Incoloy Elements - Are low watt density and installed into every model to operate more efficiently and last longer
- Heavy Gauges Steel Tank - For extra years of trouble-free service
- Glass-Lined Tank - Inner Tank glass-lined with Dura-Glas and fired at 1600 degrees for optimum protection from the effects of corrosion
- Magnesium Anode Rod - To protect tank life
- Factory Installed Dielectric Hot and Cold Water Connections
- Brass Drain Valve (Full Port Valve) - Allows for easy draining and avoid clogging
- Factory Installed Heat Traps
- Temperature and Pressure Release Valve - Can be relocated from side to optional top opening
- Choice of 6 or 12 Year Limited Tank & Component Parts Warranty
