Product Description

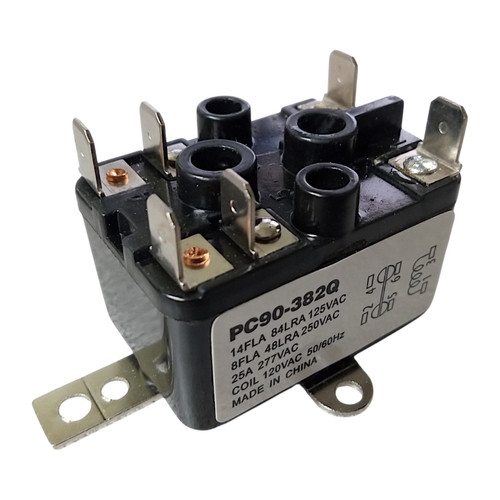

Part Number 90-382
General Purpose Enclosed Fan Relay
Specifications:
- 14 FLA, 84 LRA, 125 VAC
- 8 FLA, 48 LRA, 250 VAC
- 25 A, 277 VAC
- Coil 120 VAC 50/60 Hz
- 2 Pole
- 1 N.O. + 1 N.C.
- 6 Wire Hook Up (6 Male 1/4" Terminals)
- Wiring Diagram printed on Relay
- 6 Mounting Tabs
Applications: HVAC&R equipment, fan controls, & vending machines
Replacement for:
- RBM Style 184 Relays of the same specifications
