Product Description

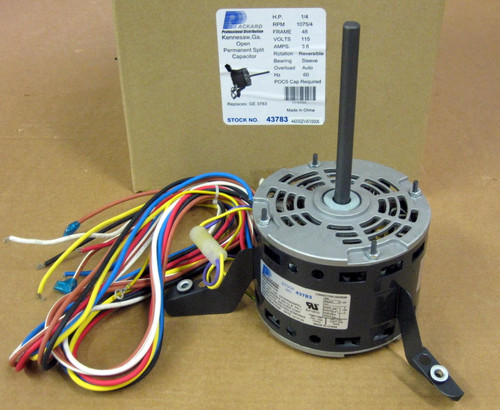

Packard Motor Part number 43783
This motor is an exact replacement for GE stock number 3783
Motor Specifications:
- 1/4 HorsePower
- 115 Volts Single Phase
- 3.6 Amps on High Speed
- 1075 RPM
- Four Speed
- Electrically Reversible (by flipping 2 wires)
- 5-5/8" Diameter
- 1/2" x 6" Shaft (can be cut down with a hacksaw if needed)
- 4" Body Length
- Mounts with 3 Wings Welded onto Motor, Grommets included
- The spacing of the mounting holes are 9" center to center
- Sleeve Bearing
- Thermally Protected
- Capacitor Start, requires a 5 mfd 370 vac capacitor
- Capacitor is not included
- Wiring Diagram Printed on Motor
