Supco 4317943 Refrigerator Ice Maker for Whirlpool Kenmore KitchenAid

MXN726.64
SKU:
IM943
UPC:
638876927253
Condition:
New

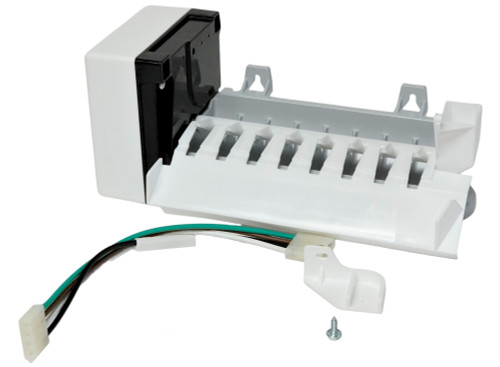

Product Description

Supco Part Number 4317943

Refrigerator Ice Maker

Includes:

  • 1 Cord that has a round 4 pin connection and measures 7.25" long
  • 1 Cord that has a flat rectangle 4 pin connection and measures 10.5" long
  • 1 Shutoff Bail Arm
  • 1 Level Plate (Plastic)
  • 2 Mounting Clips
  • Instructions

The cord plugs into the head of the ice-maker then into the refrigerator. Both cords are fuse protected.  In some cases you may have to use your old cord. The cord removes from the ice-maker by pushing on the spring clip and pulling it out from the socket.  The thickness of the ice is controlled by turning a plastic screw on the side of the head.  This ice-maker is designed for replacement only and does not include ice-maker valve or bucket

Replacement moduler Refrigerator ice-maker part number IM943

Replacement for the numbers 4317943, 626633, 626636, 4210317, 4211173, 4317943R, 480616, 480617, 482014, 482015, 482016, 482017, 482018, 482019, 482394, 482433, 482990, 625601, 625603, 625610, 625611, 625622, 625625, 625653, 625656, 625660, 626002, 626201, 626237, 626366, 626461, 626489, 626608, 626609, 626626, 626636, 626670, 626681, 626687, 627572, 68972-4, 797991, 8114, 833701, 978552, 978553, 978556, M626687, W10122496, W10190952, W10281545. W10122496, PS358591 and AP2984633

Designed to fit specific Whirlpool manufactured refrigerator models including KitchenAid, Roper and Kenmore

Product Reviews

Write a Review
  • 5
    Item works as it should. Install was easy.

    Posted by Robert Tate on 1st Feb 2023

    Much cheaper price than a factory part. Installs easy & works as it should. Hope it lasts.

  • 5
    ice maker

    Posted by Orlando Garrett on 31st Jan 2023

    Good product, fit perfectly, changed wiring harness, making ice.

  • 4
    Ice maker

    Posted by David Boyd on 30th Jan 2023

    Working great…so far. Relatively easy to install.

  • 4
    replacement Ice maker

    Posted by Unknown on 13th Dec 2022

    The icemaker seems to work good, was just installed so no longevity report yet. A couple small items on the unit were different than the original, the exit tray on the new unit isn’t the same and ice cubes on each outside edge of the maker intend to drop inside the freezer instead of in the collector bucket. The funneling piece where the water comes in isn’t as large as the original, creating concerns that water will drip outside the funnel and freeze on the inside freezer walls.

  • 5
    Refrigerator Ice Maker

    Posted by Edwin on 9th Dec 2022

    Perfect fit, easy DIY installation. Works great! Highly recommend. Thanks for the product!

  • 5
    Couldn't have been easier to install

    Posted by Ken on 6th Dec 2022

    I had the ice maker replaced in less than 1/2 an hour.

    Started making ice right away!

  • 5
    Perfect for my Whirlpool Refrigerator

    Posted by David on 12th Oct 2022

    The coating was coming off the base of my old ice maker and I couldn't beat the price for this whole unit. Came with everything I needed to replace it and it is working perfectly. Ice is being made again.

  • 5
    Excellent!

    Posted by Hunter on 22nd Sep 2022

    This icemaker was a perfect fit. Arrive quickly, easy to install, and has been working perfect the past two weeks. Thank you!

  • 5
    Icemaker

    Posted by Robert Massinger on 1st Sep 2022

    Exact replacement wiring harness perfect fit.Once it got cold everything performed perfectly.Good instructions great results!I am a novice at this and saved $$$$.Thanks

  • 5
    Perfect Icemaker

    Posted by Deb on 29th Aug 2022

    Icemaker fit perfectly. Arrived Quickly. Exactly as Described!

  • 5
    Whirlpool

    Posted by Scott Gaston on 29th Aug 2022

    Worked like a charm! And a great price! My Whirlpool fridge has French doors and the ice maker/freezer below. Comes with a new bracket, or just use the old one!

  • 5
    Ice maker

    Posted by Jan Chizinski on 26th Aug 2022

    The ice maker fit perfectly, installation instructions were clear, and it works! Very happy!

  • 5
    Ice maker

    Posted by Roger Olson on 14th Jul 2022

    plugged it in and is working great

  • 5
    Ice maker

    Posted by John Lawrence on 22nd Jun 2022

    Very reasonable price and fast delivery!

  • 5
    Good Replacement For My Old Whirlpool Fridge

    Posted by Jennifer on 29th May 2022

    The ice maker was easy to install and worked as intended right out of the box! Plug and play.

  • 5
    Perfect Replacement

    Posted by Bryan Green on 19th May 2022

    This unit was a perfect replacement for my Galaxy ice maker after a lightening strike disabled the original.

  • 4
    Ice maker

    Posted by David Johnson on 12th May 2022

    Great price, fast shipping, not exact match on attachments...wire harness is too short, on off arm too short from original... but works.
    Did I mention it was a good deal and great service...thx

  • 5
    Quick delivery, easy install, works great

    Posted by Brock Holmes on 10th May 2022

    Everything was great concerning the product and the quickness of the delivery and the ease of the installation. The heating element had gone out on the old ice maker and we were debating getting a new fridge. This easy fix saved us hundreds of dollars... GREAT!
    My only complaint is I wish the instructions were a little better and had more detail. The ice maker did not kick in right away after installation but I looked up a YouTube video that showed me how to reset it using a jumper and things took off after that 10minute fix.

  • 5
    Refrigerator Icemaker

    Posted by Steve on 5th May 2022

    Bought this as replacement for my whirlpool refrigerator’s ice maker. It shipped quickly, it was easy to install, and very affordable. Highly recommend.

  • 5
    ICEMAKER

    Posted by Unknown on 20th Apr 2022

    Thanks !
