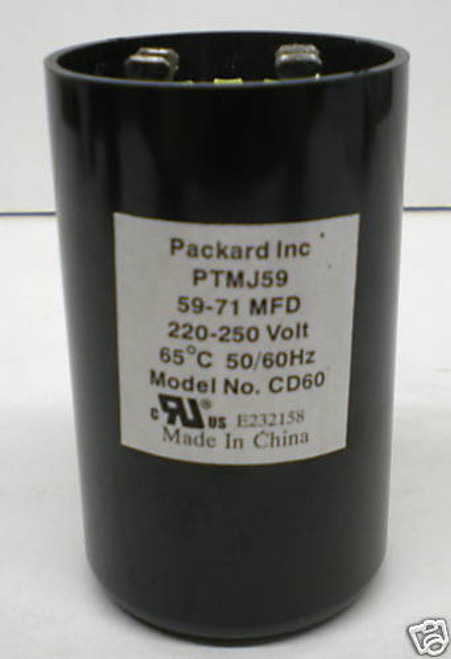

PTMJ59 Motor Start Capacitor

Packard PTMJ59 Motor Start Capacitor. 59-71 MFD UF / 220-250 VAC

$5.64
SKU:
59-250
UPC:
840899106861
Condition:
New

Product Description

Packard PTMJ59 Motor Start Capacitor 59-71 MFD UF / 220-250 VAC
Dimensions: 2-1/16" Diameter x 3-3/8" Height
There are 1/4" male terminals on the capacitor
Rated at 59-71 uf  165 Volts 50/60HZ
Features:

  • Dry,electrolytic, non polarized capacitors for intermittent duty in AC motor starting circuits
  • Cans are made of moisture and oil resistant molded phenolic resin or plastic
  • Standard dual blade terminals
  • Operating temperature range: -40C to 65C (-40F to 149F)
  • UL and cUL recognized
  • Rated 3-second start
  • 50/60 Hertz

Product Reviews

Write a Review
  • 4
    59-71 MFD Cap

    Posted by Fenway on 18th Aug 2020

    I needed a new motor start capacitor for my Franklin well pump control box. I was looking for one made in USA by BMI to match the original. The best price I could find was twice as much and sold by a company in Canada. I decided to save some money and buy the China made cap from a company in USA. The dimensions are slightly larger than the original but close enough to fit in the same spot with a little effort. So far it's working well, but I would be willing to pay a little more for one made in USA.
