Product Description
Mastercool Part Number 94261

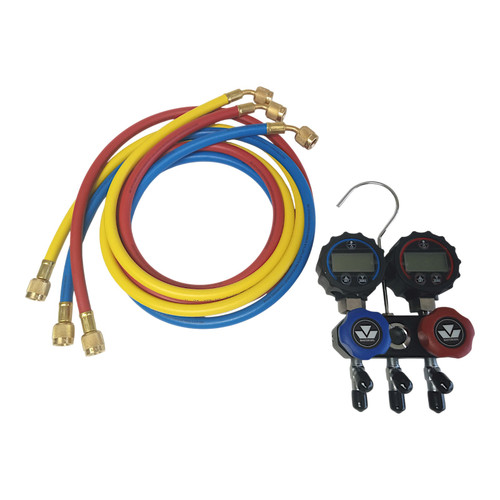

HVAC Refrigerant 2-Way Aluminum Mini-Fold Compact Digital Charging Manifold w/ Three (3) 60" High Pressure RYB Ball Valve Hoses
Includes Zippered Soft Pouch Carrying Case
Designed for 91 refrigerants including A2L, R454b, and R32
Features:
- Compact black anodized aluminum block with matte chrome fittings offer an extremely portable solution to fit the needs of every busy technician
- Easily perform pressure/temperature calculations for up to 91 different refrigerants including R454b, R32 and R410a refrigerants
- Unit conversion between MPa, kPa, bar, psi, kg/cm2, inHg
- Large 4-digit “blue” backlit LCD display provides vibrant readings in even the darkest of environments
- Displays alarm indication when over range, Celsius or Fahrenheit designation and low battery warning directly on the LCD screen
- Large sight glass for quick visual refrigerant checks
- Easy to grip knobs
Specifications:
- Pressure Range:
Low Pressure Range: -14.5 – 500 psi (-0.1 – 3.4 MPa)
High Pressure Range: -14.5 – 800 psi (-0.1 – 5.5 MPa) - Resolution: 0.5 psi
- Accuracy: +/-0.5% FS
- Measurement Units: MPA, kPa, bar, psi, kg/cm2, inHg
- Temperature Unit: ˚C/˚F
- Over Range Alarm: Display -OL-
- Operating Temperature: -10˚C to 60˚C
- Battery: CR2450
- Battery Life: Approximately 6 months
- Sampling Rate: 1 second
- Low Battery Indication: icon on LCD
- Display: 30 mm x 17 mm LCD
- Blue Backlight: Auto-off after 6 seconds
HVAC Compact 2-Way Manifold
- 1/4” SAE flare fittings
- Front facing hose holder
- Packaged in a zippered carry case
