DE838-Thermostats Heater Kit for Whirlpool Dryer 279838 279816 3387134 3392519

Dryer Element Kit for Whirlpool includes DE838 (279838), N197, 3387134, 3392519.

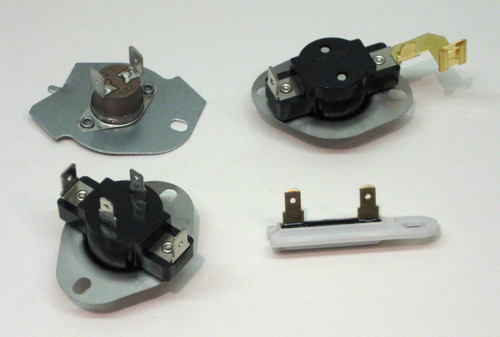

N197 is a High Limit Thermostat and Thermal Fuse for the Heater. 309* degree F Thermal Fuse with L221-65* degree F Limit Thermostat (Replacement for 279816).

3387134 is the Operating Thermostat rated at L155*-25* differential, with a 120 Volt 2 Watt Heat Anticipator. The 2 outside terminals are 1/4" male & the 2 inside terminals are 3/16" male.

3392519 is the thermal fuse is 91*C / 196*F & has 3/16" terminals, please check yours some have " terminals.

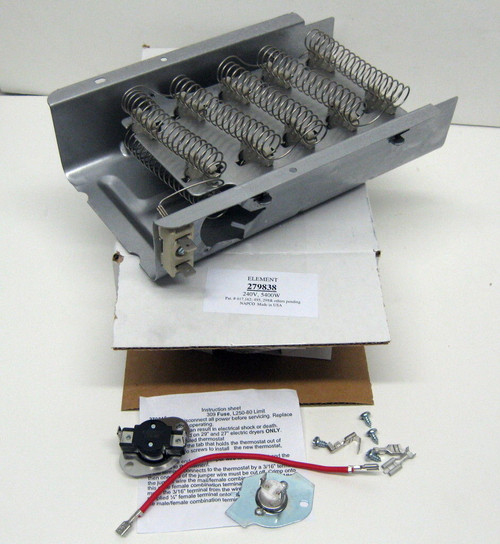

DE838 is the Dryer element replacement for 279838. The element is rated at 5400 Watts 240 Volts and has 2- 5/16" male terminals.

This is like the original installation on certain models. No need to splice any wires, no re wiring needed.

Replacement for numbers 279838, 279816, 3387134, 3392519, 3403585, PS334313 PS344510, PS345113, PS334299, AP3094244, AP3094254, AP3131939 and AP3132867.

This fits specific Whirlpool Manufactured Dryer Models including Sears/Kenmore, Kitchenaid & Roper  Models
